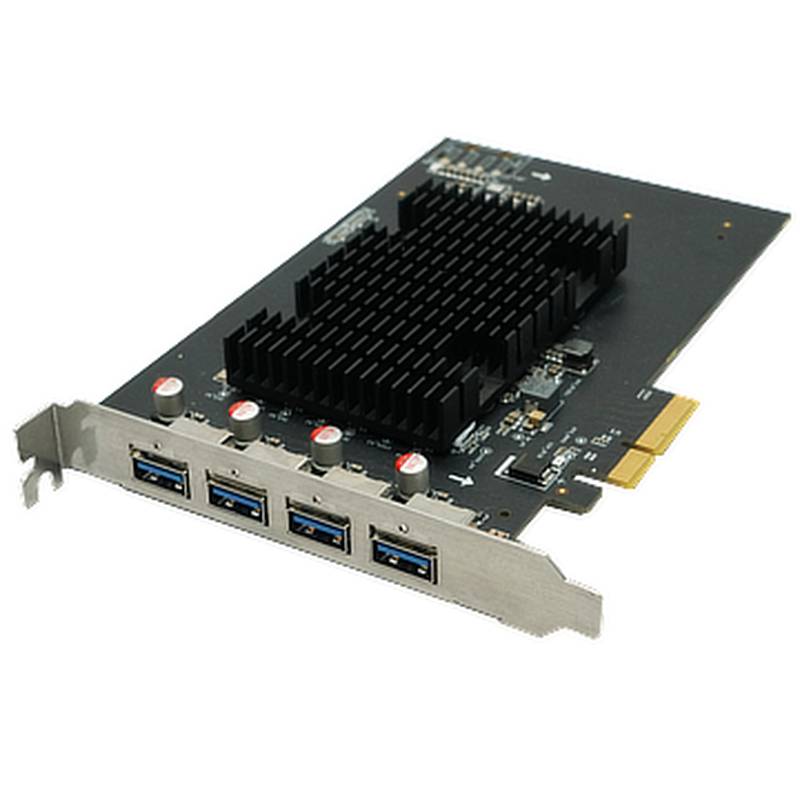

HIKROBOT MV-GU2104 4포트 네트워크 카드 머신 비전 프레임 그래버

The HIKROBOT MV-GU2104 is a high-performance machine vision frame grabber designed for industrial automation, utilizing a PCI-Express Gen2 x4 bus interface to deliver a peak transfer bandwidth of 1720 MB/s and a sustained transfer bandwidth of 1600 MB/s. This robust frame grabber excels in demanding machine vision applications by efficiently capturing and transferring image data from up to four USB 3.0 industrial cameras simultaneously. Its capability to support a maximum camera interface rate of 5 Gbps, with an actual rate of 2.9 Gbps, ensures smooth and high-throughput image acquisition, making it an ideal solution for complex industrial inspection and monitoring tasks. The MV-GU2104, a key component in the MV-GU2100 series, offers four streaming channels, enabling parallel data processing and enhancing overall system efficiency.

Product Specifications:

Model: MV-GU2104 Host Interface: PCI-E Gen2 x4 Host Interface Performance: 1720 MB/s (Peak Transfer Bandwidth), 1600 MB/s (Sustained Transfer Bandwidth) Camera Interface Standard: USB 3.0 Connector: USB 3.0 Type-A Socket, Female Power Output (per channel): Max. 4.5 W @ 5 VDC Supported Camera Type: USB Interface Industrial Cameras Maximum Supported Cameras: 4 Camera Interface Rate: Max. 5 Gbps (Actual 2.9 Gbps) Streaming Channels: 4 Pixel Format Support: Mono 8/10/10p/12/12p, Bayer 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 Typical Power Consumption: 6 W (excluding USB power), 24 W (including USB power) Dimensions: 181 mm × 126.3 mm × 21.6 mm Weight: 160 g Operating Temperature: 0 ~ 60°C Storage Temperature: -20 ~ 85°C Humidity: 10% ~ 95% RH (Non-condensing) Operating Systems: Windows 7/10, Linux Certifications: CE, FCC, RoHS

The HIKROBOT MV-GU2104 frame grabber is engineered with a focus on reliability and performance, crucial for industrial machine vision applications where precision and continuous operation are paramount. Its ability to deliver high bandwidth through the PCI-E Gen2 x4 interface ensures that even high-resolution and high-frame-rate cameras can be integrated without becoming a bottleneck. The 4-port network card design, specifically supporting USB 3.0 cameras, simplifies system integration and reduces cabling complexity compared to traditional GigE or Camera Link solutions for certain applications. Each USB 3.0 port can provide up to 4.5 W of power, potentially reducing the need for external power supplies for many cameras. The comprehensive range of supported pixel formats, including monochrome, Bayer, YUV, RGB, and BGR, offers significant flexibility for various imaging algorithms and processing requirements, from simple defect detection to complex 3D reconstruction or color analysis.

In demanding industrial environments, the MV-GU2104's robust electrical and structural characteristics are key to its longevity and consistent performance. Operating within a temperature range of 0 to 60°C and humidity levels up to 95% RH (non-condensing), it is built to withstand typical factory conditions. The device's dimensions (181 mm × 126.3 mm × 21.6 mm) and weight (160 g) facilitate easy integration into standard industrial enclosures and control cabinets. Compatibility with major operating systems like Windows 7/10 and Linux ensures broad software support and easier integration into existing automation platforms. The CE, FCC, and RoHS certifications underscore its compliance with international safety and environmental standards, providing assurance to system integrators and end-users.

The HIKROBOT MV-GU2100 series, which includes the MV-GU2104, offers scalable solutions for machine vision. For applications requiring even higher bandwidth or different connectivity options, the MV-GU2204 and MV-GU2204L models provide alternative configurations within the same product family, allowing engineers to select the most appropriate hardware for their specific project needs. This tiered approach ensures that HIKROBOT can cater to a wide spectrum of machine vision challenges, from entry-level inspection to highly sophisticated automated systems.

Industrial Scenarios and Value Proposition:

The HIKROBOT MV-GU2104 4 port network card is particularly well-suited for several high-volume industrial scenarios, delivering tangible benefits in efficiency and precision.

In Automotive Manufacturing and Assembly Lines, the MV-GU2104 can power multiple high-resolution cameras for tasks such as precise component inspection, weld quality verification, and intricate assembly guidance. By enabling the simultaneous capture of images from four cameras, it significantly boosts inspection throughput, reducing cycle times and ensuring every critical point on a vehicle is accurately assessed. This leads to improved product quality and reduced rework.

For the Food and Beverage Packaging Industry, the frame grabber is instrumental in high-speed quality control. It can support cameras for detecting foreign objects, verifying fill levels, inspecting seal integrity, and checking label accuracy on production lines operating at rapid speeds. The ability to process high-bandwidth data efficiently ensures that even subtle defects are identified, maintaining brand integrity and complying with stringent safety regulations. This directly contributes to enhanced operational efficiency and reduced product spoilage or recalls.

In Electronics Manufacturing and Testing, the MV-GU2104 facilitates detailed inspection of printed circuit boards (PCBs) and electronic components. Multiple cameras can be synchronized to inspect complex assemblies for soldering defects, component placement accuracy, and surface anomalies. The high data transfer rates ensure that the detailed images required for fine-pitch component inspection are captured without lag, leading to higher yields and improved reliability of electronic devices.

Furthermore, in Pharmaceutical and Medical Device Manufacturing, the MV-GU2104 plays a critical role in ensuring product safety and compliance. It can be used for inspecting tablets for defects, verifying the correct packaging and labeling of drugs, and ensuring the sterility and integrity of medical device components. The high precision and reliability of the frame grabber contribute to enhanced control over these critical processes, minimizing risks and ensuring patient safety.

Selection Guidance:

The HIKROBOT MV-GU2104 is an excellent choice for applications requiring the simultaneous connection and high-speed data acquisition from up to four USB 3.0 industrial cameras. Its PCI-E Gen2 x4 interface is well-matched for systems where substantial data throughput is necessary, such as those with high-resolution sensors or high frame rates. It is particularly recommended for integrating multi-camera inspection setups where a single board can manage all camera feeds, simplifying system architecture and reducing costs.

However, this model may not be the optimal choice for systems requiring only one or two cameras, where a lower-port-count or lower-bandwidth solution might suffice. Additionally, if the application necessitates camera interfaces other than USB 3.0 (e.g., GigE Vision, CoaXPress, Camera Link), alternative frame grabbers or network interface cards would be more appropriate. For applications demanding extremely high bandwidths exceeding the sustained 1600 MB/s of the PCI-E Gen2 x4 interface, exploring PCI-E Gen3 or Gen4 solutions might be necessary.

---
